Connecting a Stripe Platform Account

Overview

Violet Payments handles your platform's complete payment lifecycle through your Stripe account, including:

  • Payment processing and shopper charges

  • Commission and fee calculations

  • Fund transfers and payouts

  • Refund processing and transfer reversals

When you integrate Violet Payments, you get automatic generation of:

  • Distribution records

  • Payouts and payout summaries

  • Reconciliation data exports for accounting

Security and Privacy

Violet securely stores all credentials in HashiCorp Cloud Platform Vault, a industry-standard solution for managing sensitive data. Only authorized Violet services can access these encrypted keys. For more information, visit HashiCorp Cloud Platform Vault, here.

Integration Steps

Configure Your Stripe Account

  1. Create a Stripe account if you don't have one

  2. Enable Stripe Connect on your account

Setting up Stripe Connect

Violet relies on Stripe Connect to power the multi-merchant payments and payout flows. If a new Stripe Account is created, or Stripe Connect is not set up, merchants will not be able to connect payout accounts to your Stripe Account. To enable Stripe Connect, do the following:

  1. Click on the following link

  2. If you already have Stripe Connect set up, this page will take you to your Stripe Dashboard

  3. Click “Get Started” on the Stripe Connect page. This takes you through setting up the dashboards merchants will have access to when they connect to your Stripe Platform account, and what the transaction strategy is.

  4. Click “Continue”.

  5. Stripe will ask the following question: “How will Funds flow through your platform?”

    Select the option which says “Buyers will purchase from you”. This verifies that multi-merchant carts are possible. In the multi-merchant cart scenario, Violet handles charging the shopper and then handling transfers to each merchant involved in the transaction.

  6. Stripe will then display a pop-up to review the financial impacts of this setting. Click “Review”.

  7. Review and acknowledge the liability for chargebacks and refunds. If a dispute comes in from a shopper, this acknowledgment verifies that your Stripe Platform account will be the entry point to submitting dispute evidence, or any other documents. Click “Continue”.

  8. Stripe will ask the following question: “How will sellers be paid out?”

    Select the option which says “Payouts will be split between sellers”. This is important to ensure that in the multi-merchant cart scenario, Violet can compute the distribution amounts to all sellers involved and then process transfers to each of them. Shoppers will only see one charge on their payment method statements even while purchasing across multiple sellers.

  9. Select the industry that best matches your business. This will most likely be “E-commerce Products”.

  10. Select whether or not products listed on your marketplace through Violet will be similar across merchants. For example, if your marketplace only sells Technology products, and each merchant you connect through Violet will be a technology merchant, you can select “Yes, they’re similar”. If not, select “No, they’re different” or “Not sure”. Click “Continue”.

  11. Select the expected maximum per-item price that will be sold through your marketplace. This will be the expected maximum price across all merchants you expect to connect to. Click “Continue”.

  12. Under “Where will sellers create their account?” select the “Onboarding hosted by Stripe” section. Violet uses Stripe Express to easily allow merchants to go through a hosted KYC and payout account connection experience. Click “Continue”.

    If you are building your own custom onboarding experience, contact your Violet Account manager for additional set up requirements.

  13. For “Where will sellers manage their account?” select “Express Dashboards”. This provides merchants with default Stripe dashboards they can use to view or configure any upcoming payouts.

    If configuring your own dashboards, contact your Violet Account manager for additional set up requirements.

  14. Customize your onboarding interface so that merchants you onboard will see your platform name and branding when they go through KYC. You can do this, here.

  15. Review your setup and click “Continue”. Your account is now enabled for Stripe Connect!

  1. Locate your Stripe Account ID in Account Settings (this ID works for both Test and Live modes)

  2. Store the accountId in a secure location.

Generate Stripe Restricted Keys

Stripe Restricted Keys

Stripe restricted keys are API credentials with limited permissions that you'll generate for both test and live modes. These keys can be created through either:

  • The Stripe Dashboard API keys page

  • The Stripe CLI

Each restricted key requires two permission sets:

  1. Platform Account permissions for webhook processing

  2. Stripe Connect permissions for merchant account creation

You'll need to generate and securely store these keys before sharing them with Violet through our encrypted channel. For each of these keys, the following scopes will be needed:

You can also view these scopes on the dedicated page here.

Required Stripe Scopes

Core Resources


Resource
Permissions
Connect Permissions

Apple Pay Domains

None

None

Balance

None

None

Balance transaction sources

Read

Read

Balance Transfers

None

None

Test clocks

None

None

Charges

Write

Write

Confirmation token

None

None

Confirmation token (client)

None

None

Customers

Write

Write

Customer session

None

None

Disputes

None

None

Events

None

None

Ephemeral keys

None

None

Files

None

None

Funding Instructions

None

None

PaymentIntents

Write

Write

PaymentMethods

Write

Write

Payment Method Domains

None

None

Payouts

Read

Read

Products

None

None

Shipping Rates

None

None

SetupIntents

None

None

Sources

None

None

Tokens

Write

Write

Checkout Resources


Resource
Permissions
Connect Permissions

Checkout Sessions

None

None

Billing Resources


Resource
Permissions
Connect Permissions

Coupons

None

None

Promotion Codes

None

None

Credit notes

None

None

Customer portal

None

None

Invoices

None

None

Prices

None

None

Subscriptions

Write

Write

Quote

None

None

Tax IDs

None

None

Tax Rates

None

None

Usage Records

None

None

Meters

None

None

Meter Events

None

None

Meter Event Adjustments

None

None

Connect Resources


Resource
Permissions
Connect Permissions

All

N/A

Write

Application Fees

N/A

Inherited from parent

Login Links

N/A

Inherited from parent

Account Links

N/A

Inherited from parent

Top-ups

N/A

Inherited from parent

Transfers

N/A

Inherited from parent

Order Resources


Resource
Permissions
Connect Permissions

Orders

None

None

SKUs

None

None

Issuing Resources


Resource
Permissions
Connect Permissions

Authorizations

None

None

Cardholders

None

None

Cards

None

None

Disputes

None

None

Tokens

None

None

Token Network Data

None

None

Transactions

None

None

Reporting Resources


Resource
Permissions
Connect Permissions

Report Runs and Report Types

None

None

Webhook Resources


Resource
Permissions
Connect Permissions

Webhook Endpoints

Write

Stripe CLI Resources


Resource
Permissions
Connect Permissions

Debugging tools

None

None

Payment Links Resources


Resource
Permissions
Connect Permissions

Payment Links

None

None

Terminal Resources


Resource
Permissions
Connect Permissions

Configurations

None

None

Locations

None

None

Readers

None

None

Connection Tokens

None

None

Tax


Resource
Permissions
Connect Permissions

Tax Calculations and Transactions

None

None

Tax Settings and Registrations

None

None

Radar


Resource
Permissions
Connect Permissions

Reviews

None

None

Climate Resources


Resource
Permissions
Connect Permissions

Climate Orders

None

None

Test Mode Keys

  1. Enable Test mode

  2. Note your Publishable Key from the "Standard Keys" section

  3. Create a restricted key named violet-test with required scopes at https://dashboard.stripe.com/test/apikeys/create

  4. Store the key securely

Live Mode Keys

  1. Disable Test mode

  2. Note your Publishable Key from the "Standard Keys" section

  3. Create a restricted key named violet-live with required scopes at https://dashboard.stripe.com/apikeys/create

  4. Store the key securely

Configure Stripe OAuth

This section is only required if you plan to let merchants connect their existing Stripe Standard accounts for payouts. If you’re using only Stripe Express accounts, you can skip it.

OAuth enables merchants to connect their existing Stripe Standard accounts for payouts instead of creating new Stripe Express accounts. Violet uses Stripe Client keys to authenticate merchant accounts through OAuth 2.0 to let merchants connect their existing Stripe Standard accounts for payouts. This requires Stripe Client keys, which are separate from the restricted API keys.

With OAuth authentication:

  • Merchants can use their existing Stripe Standard accounts

  • No need to create new Stripe Express accounts

  • Violet securely connects merchant accounts to your platform

Test Mode OAuth Setup

This section only applies if you intend to allow Stripe standard accounts to be connected to your platform, in which case your Stripe client ID will need to be collected as part of your onboarding. If you intend to only connect Stripe Express accounts, you can skip this section.

  1. Toggle “on” the setting that says “Enable OAuth”

  2. Copy the “Test Mode Client ID” in a secure location

  3. Click on “Add URI” to add the following Redirect URIs.

    https://connect.violet.dev/payments/oauth/complete
    https://merchant.violet.dev/settings/payouts
    https://channel.violet.io/settings/payouts

Live Mode OAuth Setup

This section only applies if you intend to allow Stripe standard accounts to be connected to your platform, in which case your Stripe client ID will need to be collected as part of your onboarding. If you intend to only connect Stripe Express accounts, you can skip this section.

  1. Go to https://dashboard.stripe.com/settings/connect/onboarding-options/oauth or turn off “Test” mode from the toggle in the right hand corner of the screen.

  2. Toggle “on” the setting that says “Enable OAuth”

  3. Copy the “Live Mode Client ID” in a secure location

  4. Click on “Add URI” to add the following Redirect URIs.

    https://connect.violet.io/payments/oauth/complete
    https://merchant.violet.io/settings/payouts
    https://channel.violet.io/settings/payouts

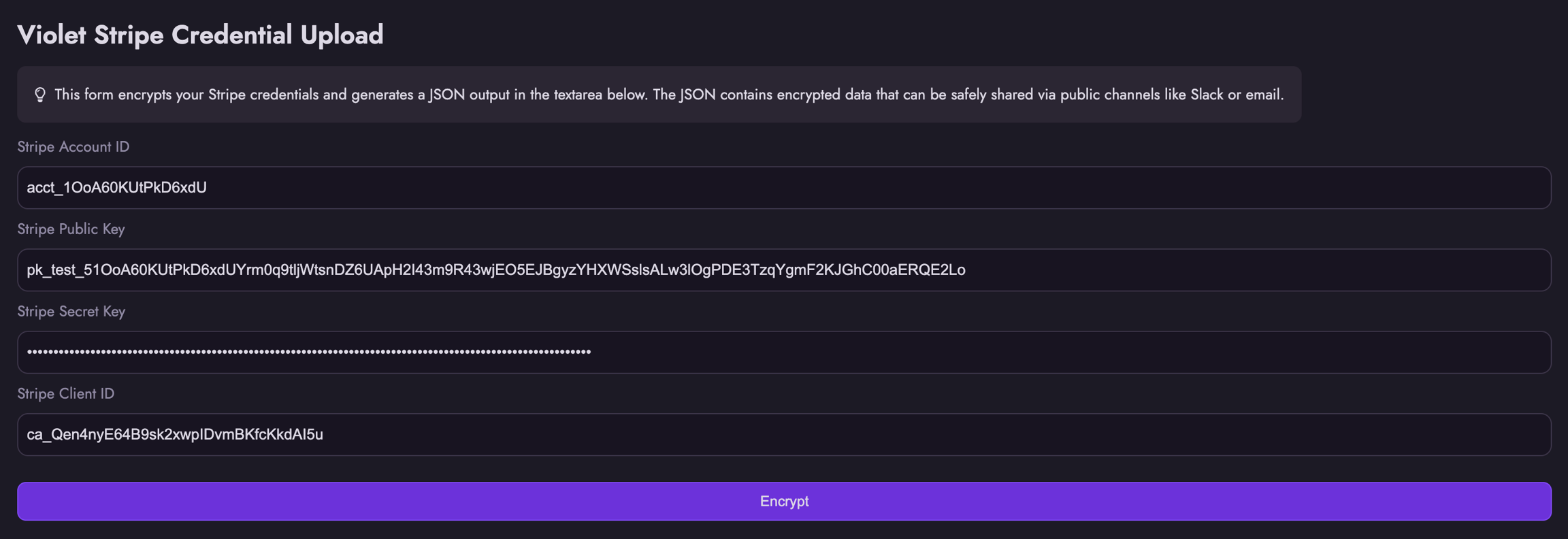

Share Stripe Keys with Violet

  • Enter your stored Stripe credentials

  • Click "Encrypt"

  • Share the encrypted payload with Violet via Slack or DevRev

  • Repeat for both Test and Live mode credentials

Verification

Test Merchant Onboarding

  1. Onboard a test merchant through the Sandbox Mode Violet Connect URL

  2. Verify the merchant's payout account appears in your Stripe Connect dashboard

To test the connection, onboard a test Merchant through the Sandbox Mode Violet Connect URL and then navigate to https://dashboard.stripe.com/test/connect/accounts/overview. The payout account created for the new Merchant should be visible in the Stripe Account that was connected to Violet.

Test Checkout Flow

To test Checkout against your Stripe account, you can create and submit an Order in Test Mode as described here.

The Order object will have a PaymentTransaction on it, which includes a payment_provider_transcation_id. This is the ID of the Payment Intent in Stripe. You can navigate to this payment intent by doing the following:

  1. Copy the payment intent ID and navigate to https://dashboard.stripe.com/test/payments.

  2. Paste the payment_intent_id in the search bar. Hit Enter.

  3. Stripe dashboards should automatically take you to the succeeded payment intent.

Alternatively, you can paste the Violet Order ID in Stripe’s search bar and hit enter. Violet attaches metadata to the transaction in Stripe, so you should be able to see any associated payment intents and transfers when searching by Order ID.
